Using folders in script

Robin Lundqvist

August 23, 2024 15:36
Updated

A folder groups a set of questions inside a survey.

<folder>

Attributes

Attribute	Description
id	Generated by the system; you do not need to set this explicitly
name	Folder name
alias	Alias for this folder
order	Question order (see below)
pipe_from	Reference to a multiple-choice question to pipe values from. The loop will run once for every choice selected.
loop	Loop a specific number of times. Variables can be used e.g. loop="myvar".
max_loop	Defines how many times the columns should be repeated in the reports.

Using folder for loops

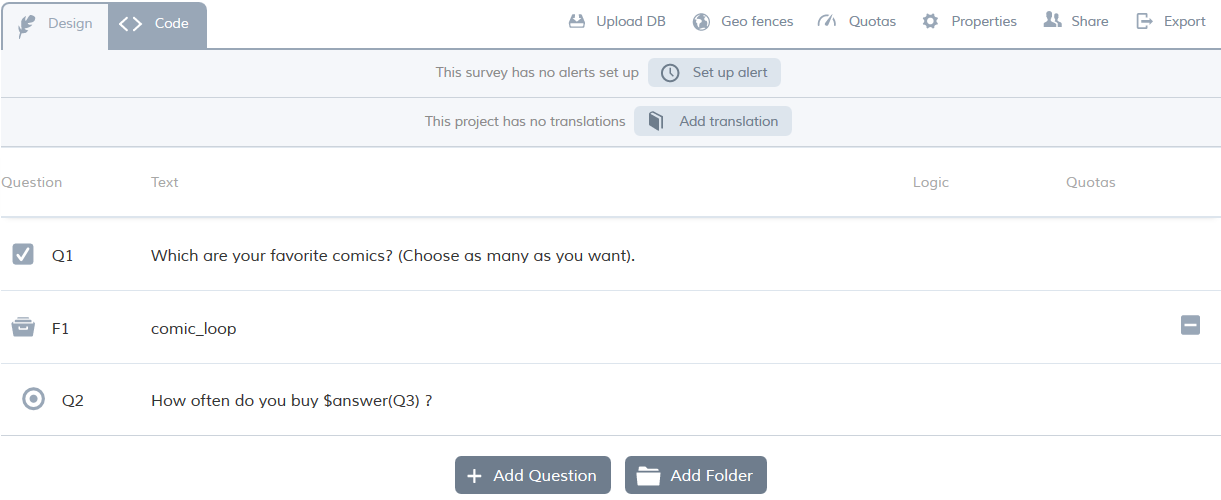

Folders are also important for implementing loops. To loop a set of questions, you must place them inside a folder. For example:

Below is the XML script of the above example:

Survey element:

<survey wave="1" order="fixed" status="scripting" name="Loop test" description="loop" type="diary" track_gps="false" id="6075" start_publish="" stop_publish="" job_number="project581" theme="" icon="" default_language="en" auto_advance="false" allow_web_display="false" back_button_disabled="false" terminate_participation_upon_quit="true">
   <item id="1"/>
   <folder id="1" name="comic_loop" alias="F1" order="randomized" pipe_from="#1">
       <item id="2"/>
   </folder>
</survey>

Question elements:

Q1

<question type="multi" max_select="-1" min_select="0" order="fixed" id="1" text="Which are your favorite comics? (Choose as many as you want)." alias="Q1">
   <choice id="1" label="Donald Duck Magazines" anchored="false" exclusive="false" alias=""/>
   <choice id="2" label="Donald Duck Pocket Books" anchored="false" exclusive="false" alias=""/>
   <choice id="3" label="Tintin Albums" anchored="false" exclusive="false" alias=""/>
   <choice id="4" label="Asterix Albums" anchored="false" exclusive="false" alias=""/>
   <choice id="5" label="Lucky Luke Albums" anchored="false" exclusive="false" alias=""/>
   <choice id="6" label="Super Hero Comics" anchored="false" exclusive="false" alias=""/>
   <choice id="7" label="Manga Comics" anchored="false" exclusive="false" alias=""/>
</question>

Inside the Folder:

Q2

<question type="single" max_select="1" order="fixed" id="2" text="How often do you buy $answer(Q1) ?" alias="Q2">
   <choice id="1" label="Every Day" anchored="false" exclusive="false" alias=""/>
   <choice id="2" label="1-2 times a week" anchored="false" exclusive="false" alias=""/>
   <choice id="3" label="1-2 times per month" anchored="false" exclusive="false" alias=""/>
   <choice id="4" label="More seldom than once a month" anchored="false" exclusive="false" alias=""/>
</question>

Please refer to text piping to learn more about $answer(Q1) used in the above example.

Scenario

Q1 Respondent chooses choice 3, 4 and 5. The loop will run once for every choice selected.

Q2 Question text will show "How often do you buy Tintin Albums?"

Loop back to Q2

Q2 Question text will show "How often do you buy Asterix Albums?"

Loop back to Q2

Q2 Question text will show "How often do you buy Lucky Luke Albums?"
